Lightweight, high-strength composite cylinders engineered for domestic and commercial industrial use. Certified to international standards, manufactured to your exact specification.
Every cylinder is engineered to outperform traditional steel alternatives in weight, safety, and service life.
Up to 70% lighter than equivalent steel cylinders — reducing vehicle payload burden and improving handling efficiency across all applications.
Carbon fibre composite overwrap delivers superior burst resistance and structural integrity, exceeding the performance of traditional metal cylinders.
Certified for domestic and commercial industrial use to ISO, CE, and ECE R110 standards — ready for regulatory compliance in European markets.
Available in volumes from 5 to 200 litres. Custom dimensions, valve configurations, and mounting solutions tailored to your exact requirements.
The polymer inner liner and composite shell eliminate rust and chemical corrosion, extending service life and reducing maintenance overhead.
Designed for both domestic household and heavy commercial industrial environments — one platform, two worlds of application.
Click any image to view it in full resolution.

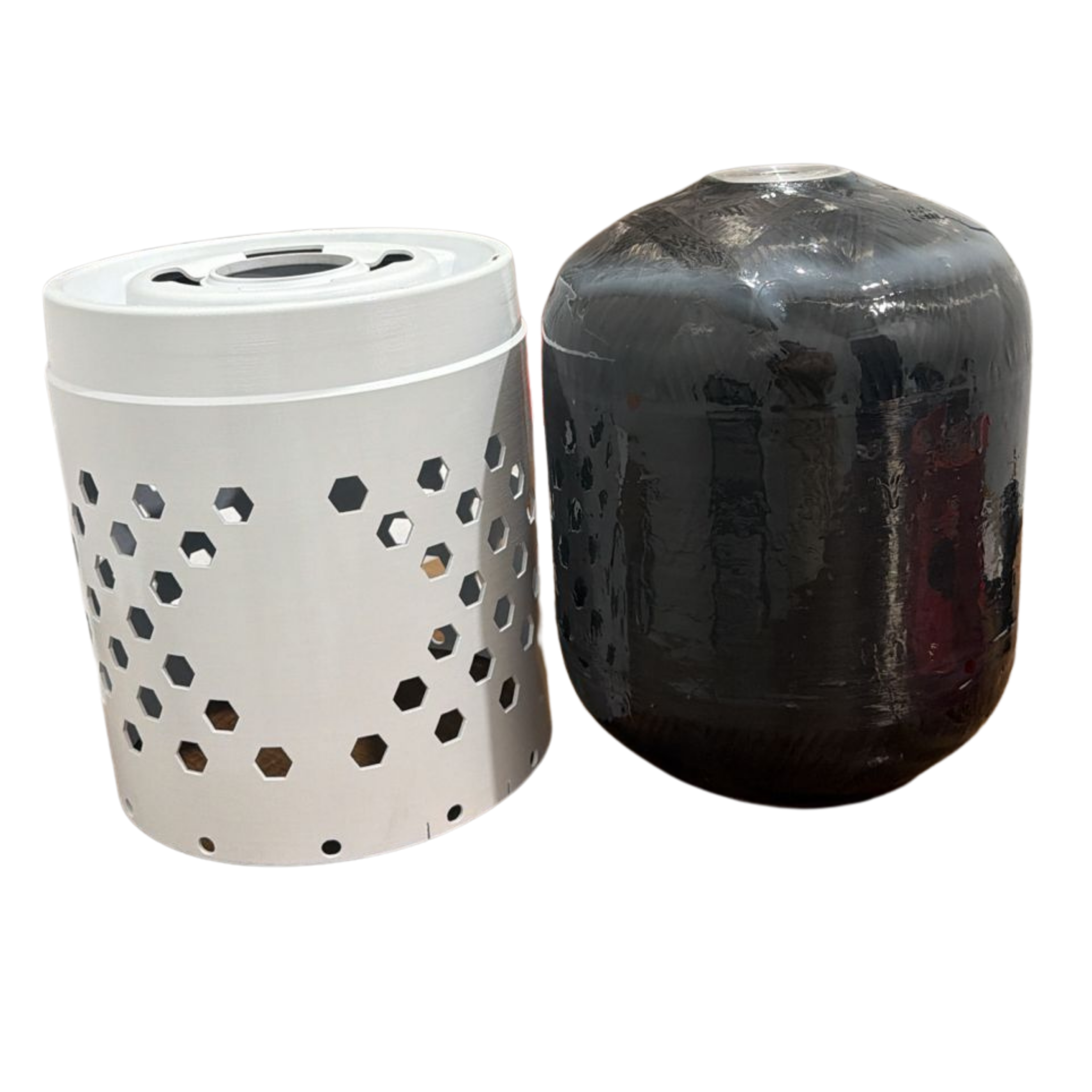

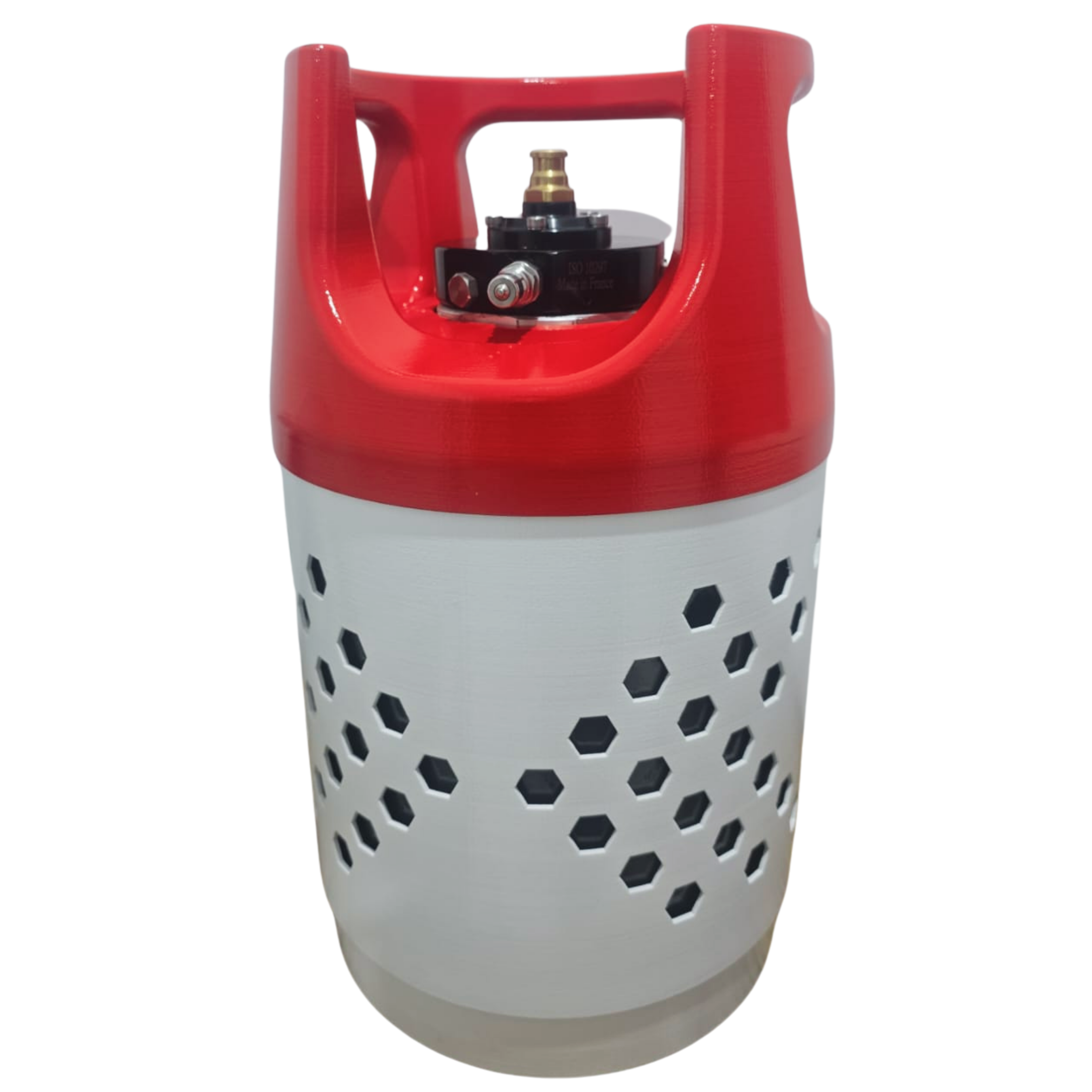

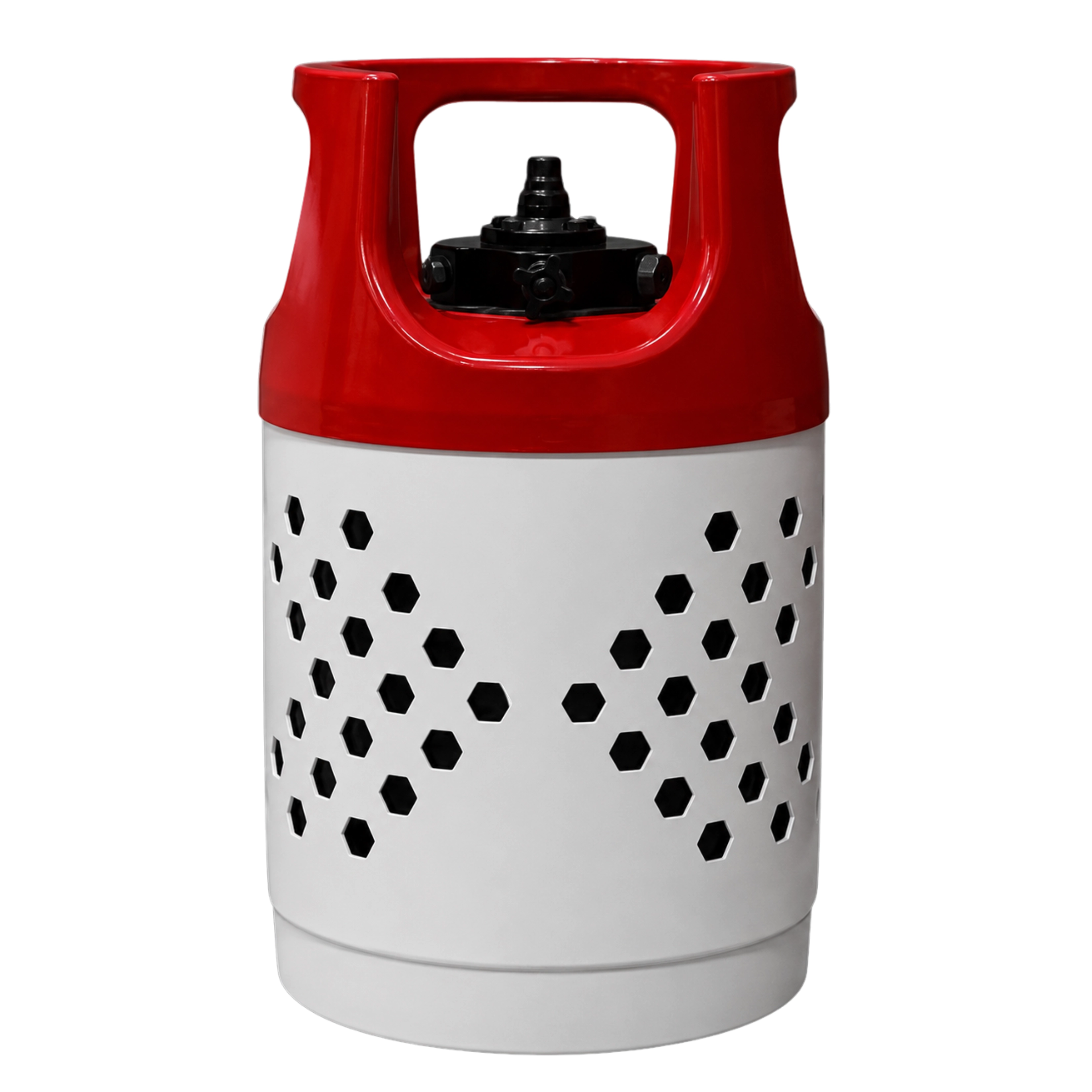

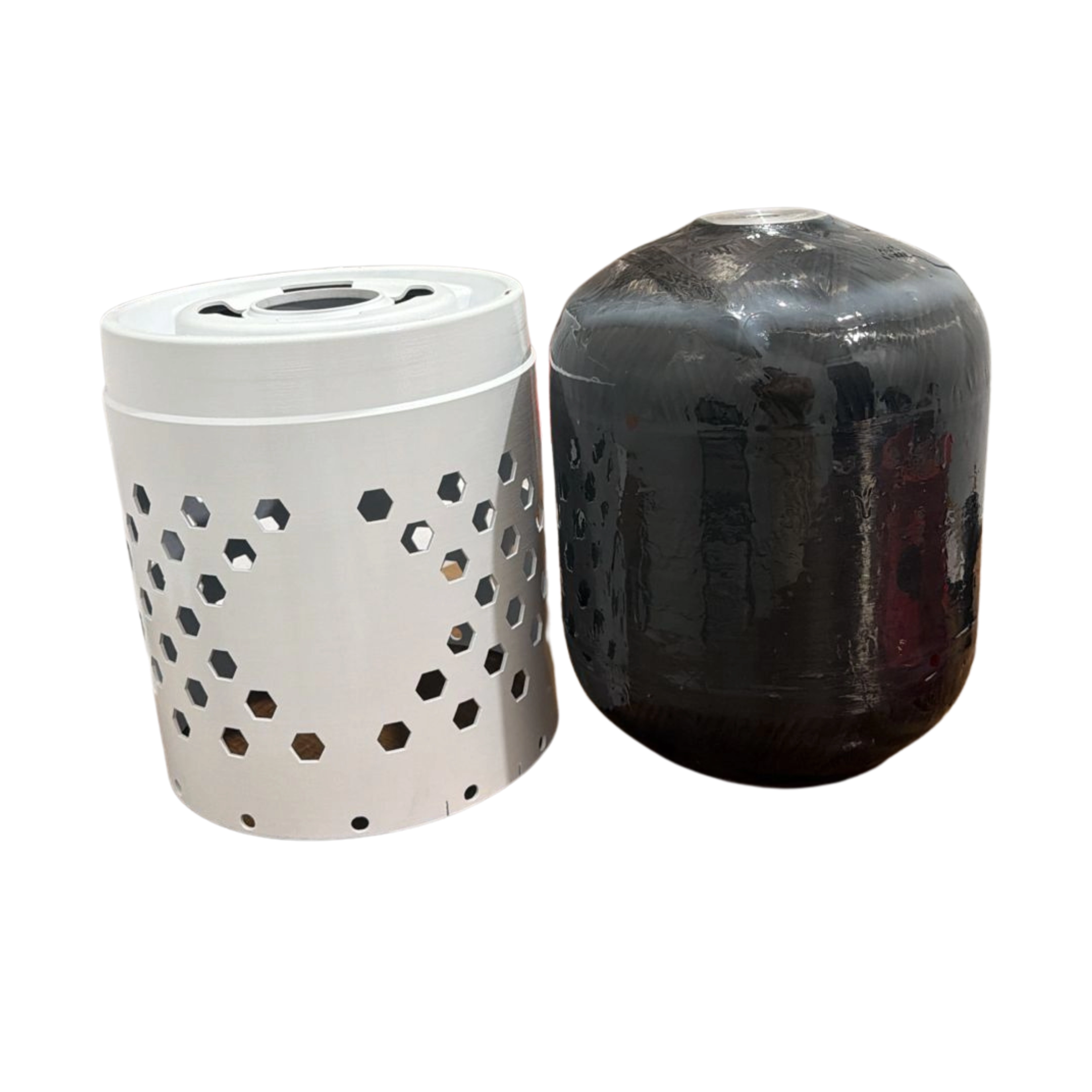

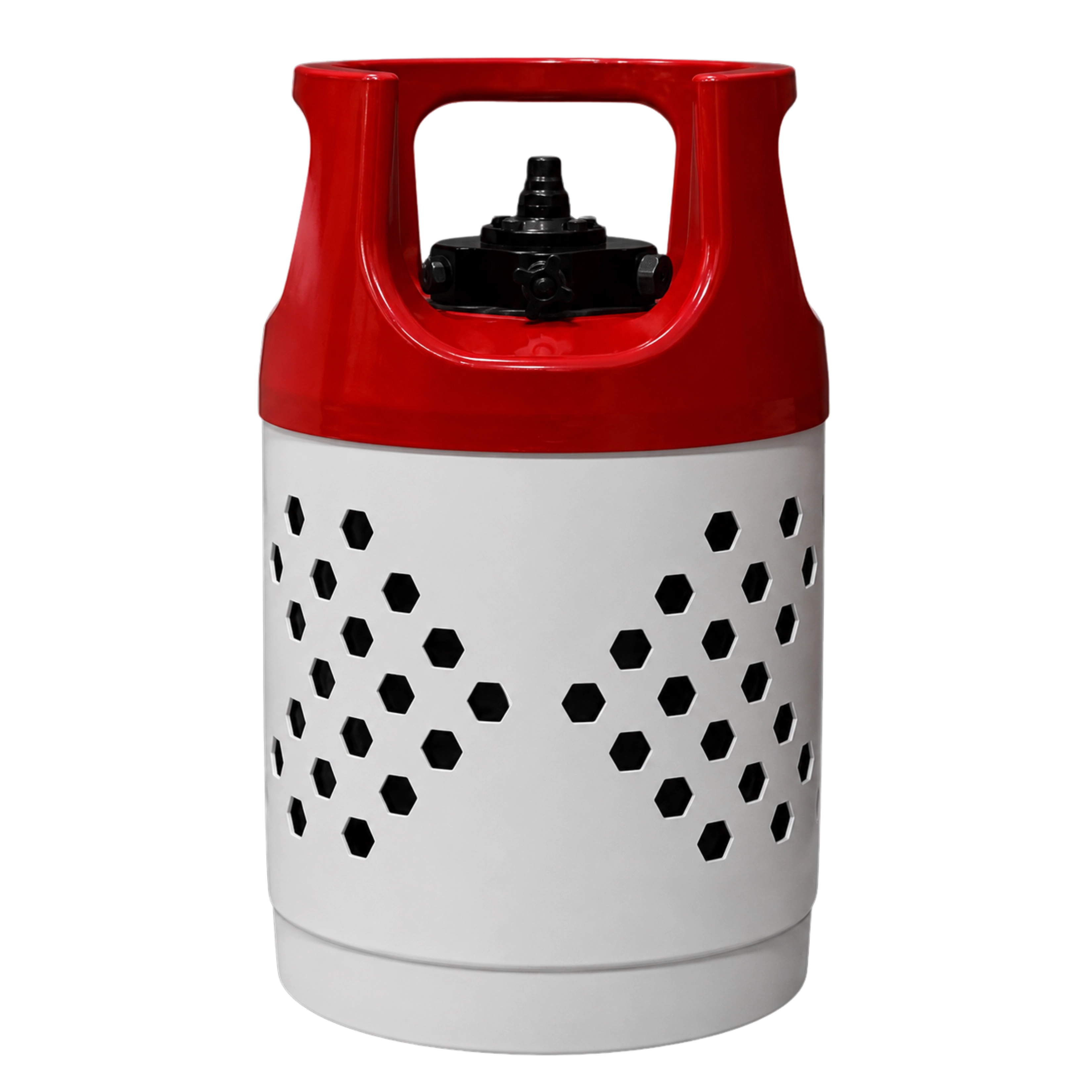

The Type 4 design eliminates the metal liner entirely, replacing it with a lightweight polymer core wrapped in precision-engineered composite layers.
Stores compressed natural gas at up to 200–300 bar operating pressure within the sealed polymer liner.
High-density polyethylene or nylon liner provides a gas-impermeable, corrosion-free inner wall. Eliminates rust entirely.
E-glass winding provides the structural foundation and distributes load uniformly before the primary composite layer.
High-tensile T700/T800 carbon filament winding at optimised angles delivers maximum burst pressure resistance at minimum weight.
UV-resistant, impact-absorbing exterior coating protects the composite layers and carries product identification markings.
All cylinders are manufactured and tested to meet or exceed European and international standards.
| Cylinder Type | Type 4 — Full Composite |
| Volume Range | 5 to 200 litres |
| Design Pressure | 200 / 250 / 300 bar |
| Working Pressure | 200 / 250 bar (CNG) |
| Inner Liner Material | HDPE / Polyamide (PA6) |
| Composite Material | Carbon Fibre + Glass Fibre |

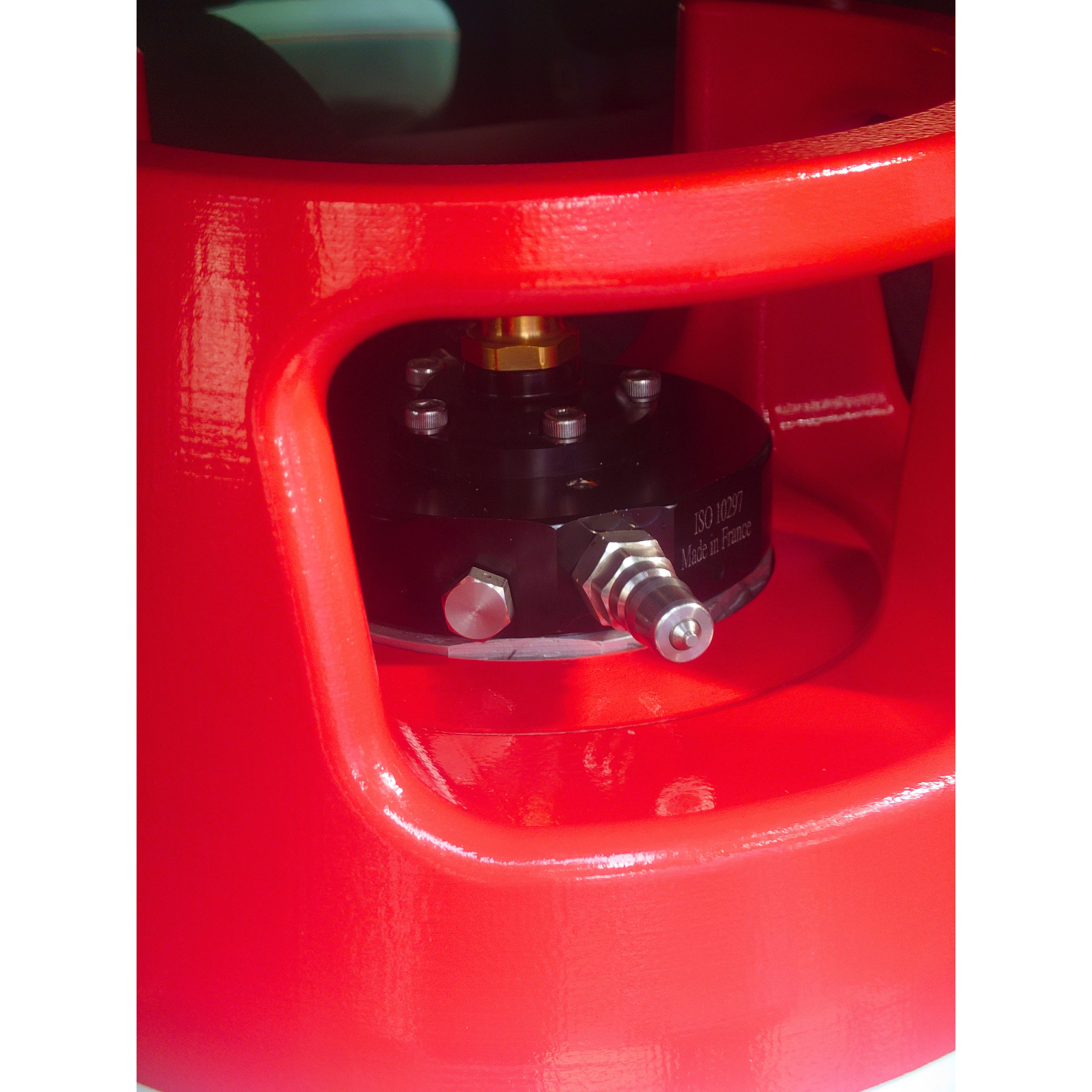

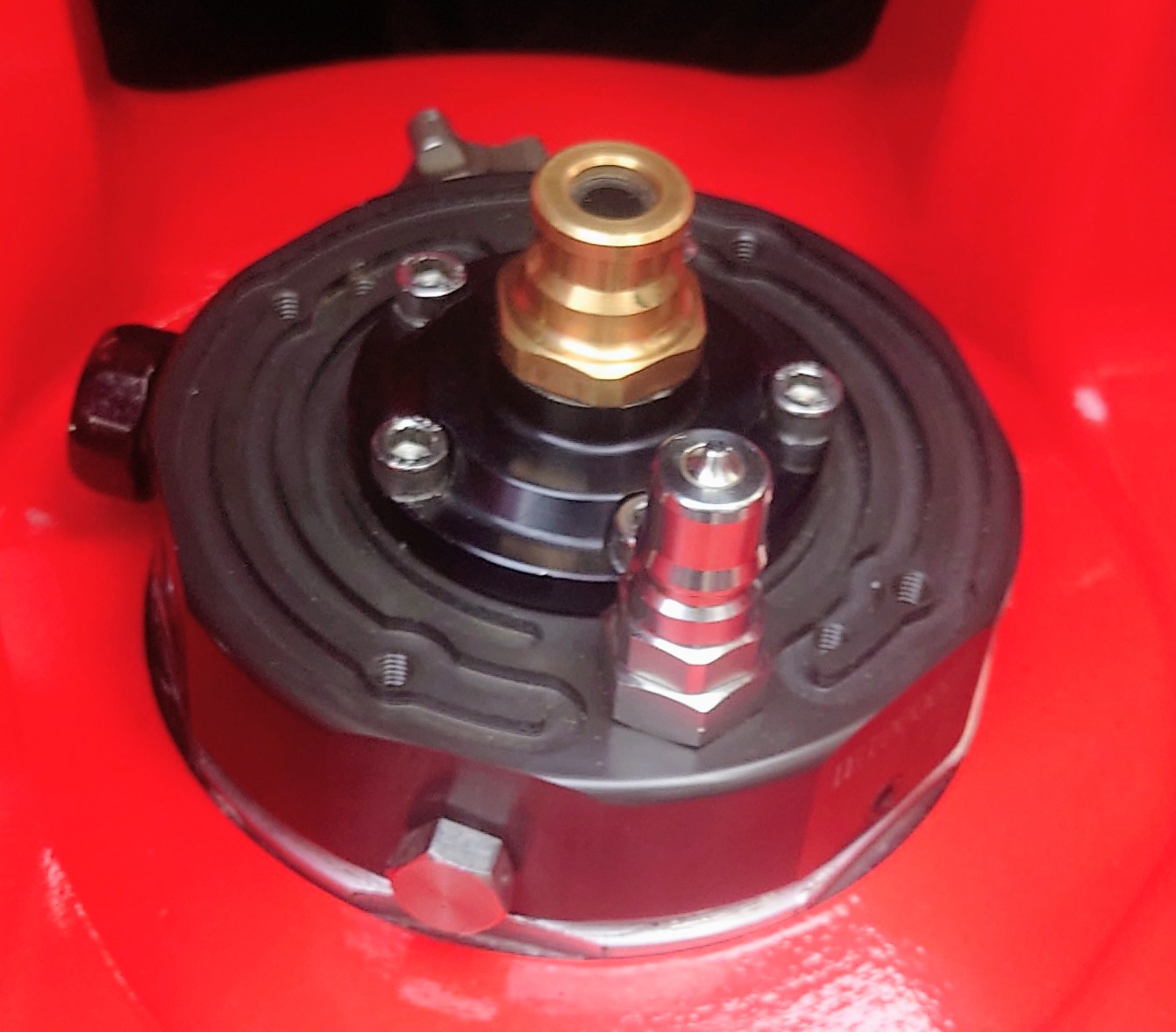

| Valve Standard | ISO 10297 (Made in France) |
| Service Temperature | −40°C to +65°C |
| Service Life | 20–25 years |
| Weight Reduction | Up to 70% vs. steel equivalent |
Every cylinder manufactured to your exact capacity requirement. Custom fittings and valve configurations available on request.
Discuss your specification requirements directly with our engineering team. We respond to all enquiries within one business day.
